Spring Boot：上传和下载文件的web应用

Posted on Edited on In

Spring Boot 之 编写一个可以上传和下载文件的web应用

最终效果

实现了一个可以上传和下载文件的单页面web应用

选择文件并上传：

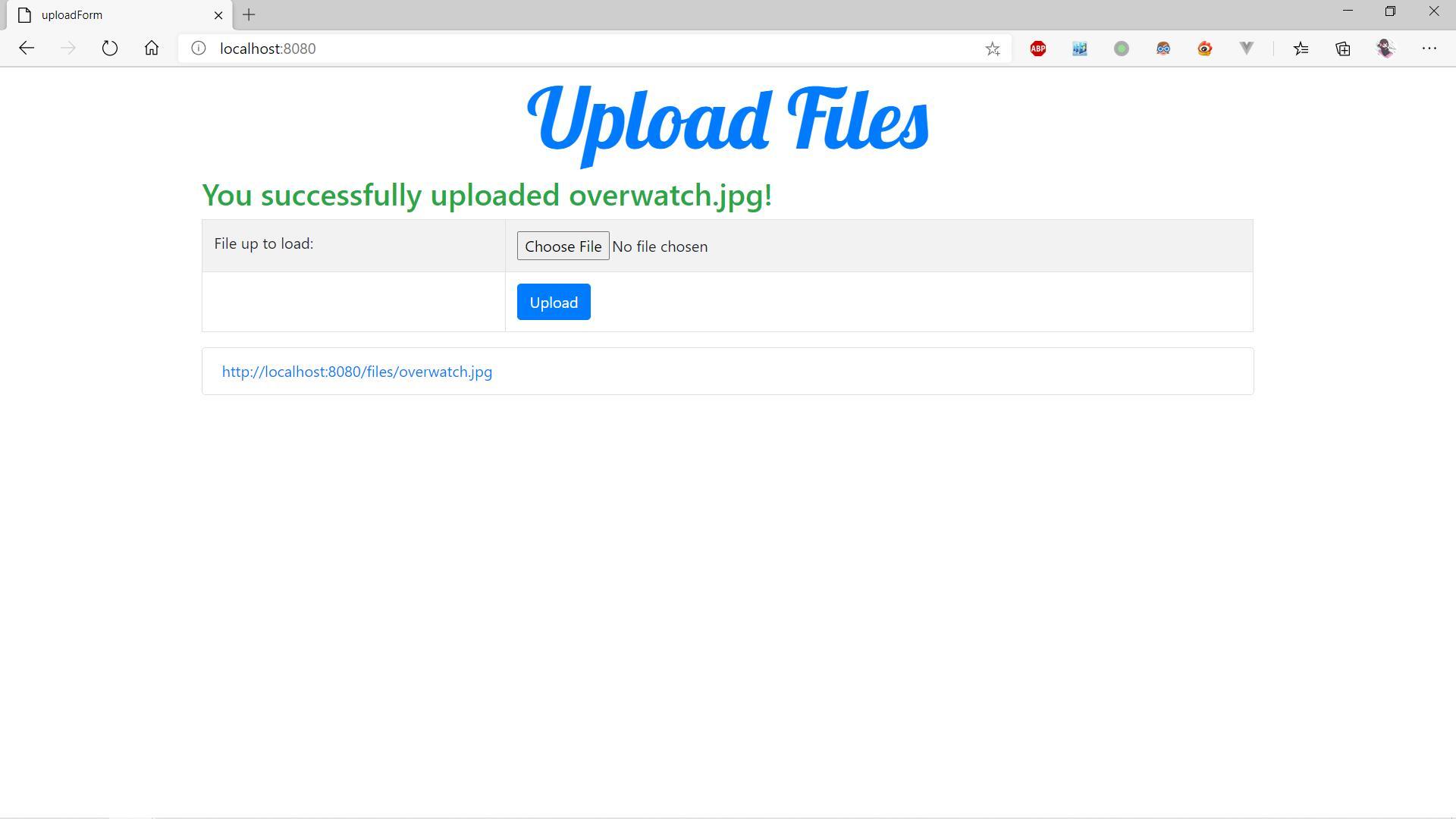

上传成功之后顶部会有绿色的提示消息。

上传之后就可以通过自动生成的链接来访问下载，如果所示，也可以通过<img>直接访问。

可能的用途

  • 如果有服务器的话，可以把这个应用部署在服务器上，于是就有了一个私人订制的图床
  • 如果有服务器的话，可以把这个应用部署在服务器上，于是就有了一个私人订制的云盘
  • 如果有服务器的话，可以把这个应用部署在服务器上，于是就有了一个私人订制的XFTP

技术栈

  • Spring Boot
  • Maven
  • Java IO
  • Java Stream
  • Html
  • Bootstrap（美化页面所需，也可以不用）

步骤

创建项目

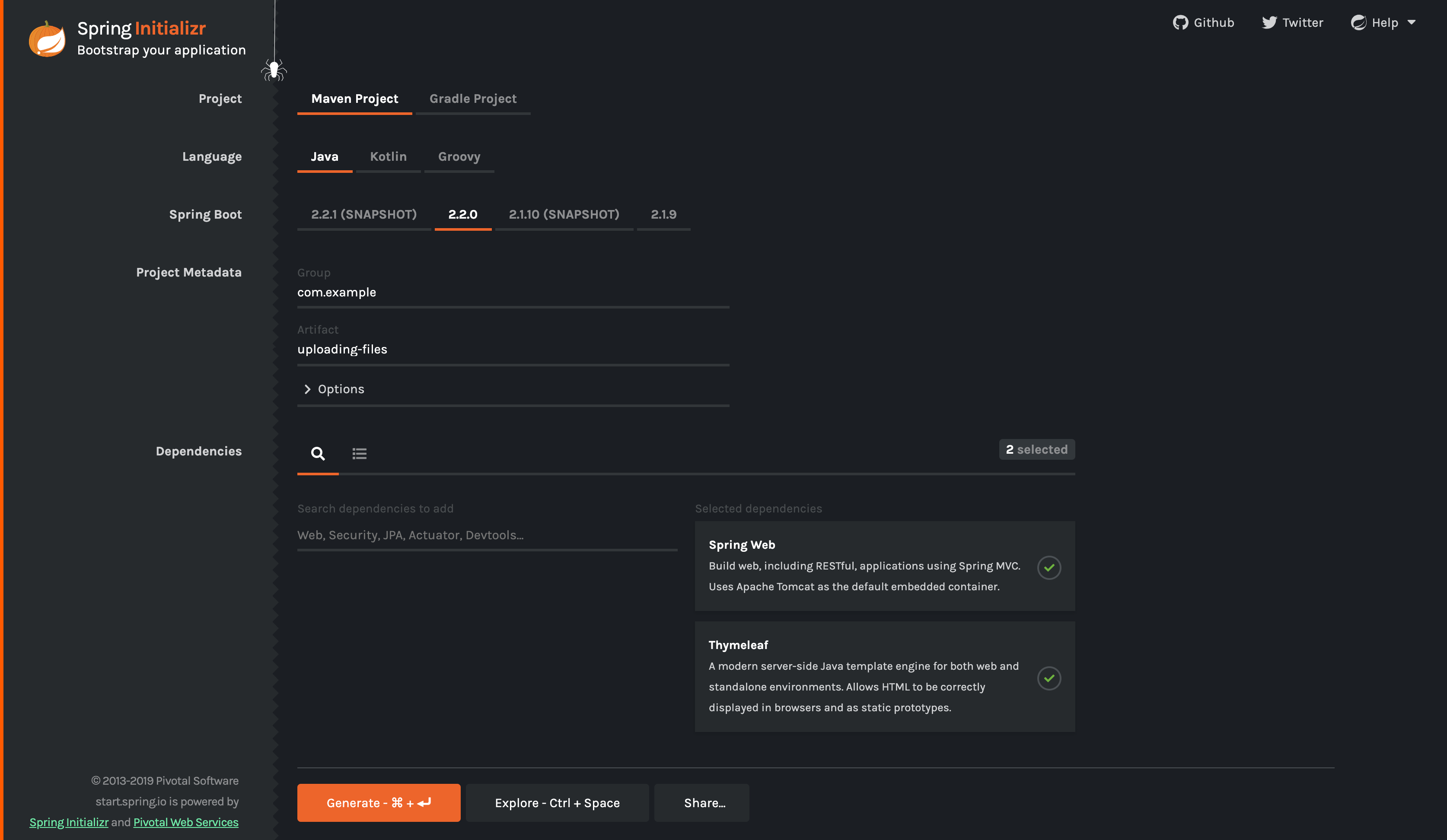

通过Spring Initializr创建一个Spring Boot项目：

需要的依赖项：Spring Web，ThymeLeaf。

最终的Pom文件：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.0.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>eternal.fire</groupId>
    <artifactId>uploading-files</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>uploading-files</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>14</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

创建Application类

为了启动Spring Boot应用，需要一个Application类。spring-boot-starter-thymeleaf和spring-boot-starter-web已经由Spring Boot自动配置完成，除此之外，我们还需要注册一个MultipartConfigElement类，但是多亏了有Spring Boot，一切都已经自动配置好了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
package eternal.fire.uploadingfiles;

import eternal.fire.uploadingfiles.storage.StorageProperties;
import eternal.fire.uploadingfiles.storage.StorageService;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
@EnableConfigurationProperties(StorageProperties.class)
public class UploadingFilesApplication {

    public static void main(String[] args) {
        SpringApplication.run(UploadingFilesApplication.class, args);
    }

    @Bean
    CommandLineRunner init(StorageService storageService) {
        return args -> {
            storageService.deleteAll();
            storageService.init();
        };
    }
}

@SpringBootApplication注解等价于：@Configuration+@ComponentScan+@EnableAutoConfiguration。

@Configuration：告诉Spring被标注的类里有需要注册的定制的@Bean。

@ComponentScan：告诉Spring去寻找用@Component、@Configuration和@Service标记的类并注册到Spring容器。

@EnableAutoConfiguration：启动自动配置。

1
2
3
4
5
6
7
@Bean
CommandLineRunner init(StorageService storageService) {
    return args -> {
        storageService.deleteAll();
        storageService.init();
    };
}

在CommandLineRunner类里覆写run方法，就可以在Spring Boot项目启动之后执行run方法内部的代码。上面使用了Lambda函数，其等价于：

1
2
3
4
5
6
7
8
9
10
@Bean
CommandLineRunner init(StorageService storageService) {
    return new CommandLineRunner() {
        @Override
        public void run(String... args) throws Exception {
            storageService.deleteAll();
            storageService.init();
        }
    };
}

这一步的目的是在Spring Boot项目启动的时候删除旧的文件夹，创建新的文件夹。

作为Spring Boot自动配置的一部分，MultipartConfigElement bean会被自动创建并处于就绪状态。

创建上传文件的Controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
package eternal.fire.uploadingfiles;

import eternal.fire.uploadingfiles.storage.StorageFileNotFoundException;
import eternal.fire.uploadingfiles.storage.StorageService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.Resource;
import org.springframework.http.HttpHeaders;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.web.servlet.mvc.method.annotation.MvcUriComponentsBuilder;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import java.util.stream.Collectors;

@Controller
public class FileUploadController {
    private final StorageService storageService;

    @Autowired
    public FileUploadController(StorageService storageService) {
        this.storageService = storageService;
    }


    // 从StorageService里找到所有的文件并将其用Thymeleaf渲染到页面
    // 用MvcUriComponentsBuilder计算资源的路径，这里的Stream用的很秀，让人眼花缭乱。
    @GetMapping("/")
    public String listUploadFiles(Model model) {
        model.addAttribute("files", storageService.loadAll().map(path -> MvcUriComponentsBuilder.fromMethodName(FileUploadController.class, "serveFile", path.getFileName().toString()).build().toUri().toString()).collect(Collectors.toList()));
        return "uploadForm";
    }

    // 如果有资源，就加载资源并通过Content-Disposition response header向浏览器发送过去。
    @GetMapping("/files/{filename}")
    @ResponseBody
    public ResponseEntity<Resource> serveFile(@PathVariable String filename) {
        Resource file = storageService.loadAsResource(filename);
        return ResponseEntity.ok().header(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=\"" + file.getFilename() + "\"").body(file);
    }

    // 处理浏览器上传的文件并将其保存，渲染上传成功的提示信息。
    @PostMapping("/")
    public String handleFileUpload(@RequestParam("file") MultipartFile file, RedirectAttributes redirectAttributes) {
        storageService.store(file);
        redirectAttributes.addFlashAttribute("message", String.format("You successfully uploaded %s!", file.getOriginalFilename()));
        return "redirect:/";
    }

    @ExceptionHandler
    public ResponseEntity<?> handleStorageFileNotFound(StorageFileNotFoundException exc) {
        return ResponseEntity.notFound().build();
    }
}

页面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
<!DOCTYPE html>
<html lang="en" xmlns:th="https://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>uploadForm</title>
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.5.0/dist/css/bootstrap.min.css"
          integrity="sha384-9aIt2nRpC12Uk9gS9baDl411NQApFmC26EwAOH8WgZl5MYYxFfc+NcPb1dKGj7Sk" crossorigin="anonymous">
    <script src="https://cdn.jsdelivr.net/npm/jquery@3.5.1/dist/jquery.slim.min.js"
            integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj"
            crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js"
            integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo"
            crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.5.0/dist/js/bootstrap.min.js"
            integrity="sha384-OgVRvuATP1z7JjHLkuOU7Xw704+h835Lr+6QL9UvYjZE3Ipu6Tp75j7Bh/kR0JKI"
            crossorigin="anonymous"></script>
</head>
<body>

<div class="container">
    <h1 class="text-primary display-2 text-center" style="font-family: Lobster,serif">Upload Files</h1>
    <div th:if="${message}">
        <h2 th:text="${message}" class="text-success"></h2>
    </div>

    <div>
        <form method="post" enctype="multipart/form-data" action="/">
            <table class="table table-bordered table-striped">
                <tr>
                    <td>File up to load:</td>
                    <td><input type="file" name="file"/></td>
                </tr>
                <tr>
                    <td></td>
                    <td><input class="btn btn-primary" type="submit" value="Upload"/></td>
                </tr>
            </table>
        </form>
    </div>

    <div>
        <ul class="list-group">
            <li th:each="file:${files}" class="list-group-item">
                <a th:href="${file}" th:text="${file}"></a>
            </li>
        </ul>
    </div>
</div>

</body>
</html>

这个页面包含三个部分：

  1. 可选的上传成功的提示信息
  2. 用来上传文件的表单
  3. 一个list用来显示已经上传的文件

StorageService类

需要一个StorageService类以便于Controller层和Storage层交互。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package eternal.fire.uploadingfiles.storage;

import org.springframework.core.io.Resource;
import org.springframework.web.multipart.MultipartFile;

import java.nio.file.Path;
import java.util.stream.Stream;

public interface StorageService {
    void init();

    void store(MultipartFile file);

    Stream<Path> loadAll();

    Path load(String fileName);

    Resource loadAsResource(String fileName);

    void deleteAll();
}

StorageService的实现类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
package eternal.fire.uploadingfiles.storage;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.io.Resource;
import org.springframework.core.io.UrlResource;
import org.springframework.stereotype.Service;
import org.springframework.util.FileSystemUtils;
import org.springframework.web.multipart.MultipartFile;

import java.io.IOException;
import java.net.MalformedURLException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.Objects;
import java.util.stream.Stream;

@Service // 和@Component还有@Bean的作用一样，不过@Service用于标注业务层组件，@Repository用于标注数据访问组件，即DAO组件.
public class FileSystemStorageService implements StorageService {

    private final Path rootLocation;

    @Autowired
    public FileSystemStorageService(StorageProperties properties) {
        this.rootLocation = Paths.get(properties.getLocation());
    }

    @Override
    public void store(MultipartFile file) {
        try {
            if (file.isEmpty()) {
                throw new StorageException("Failed to store empty file " + file.getOriginalFilename());
            }
            Files.copy(file.getInputStream(), this.rootLocation.resolve(Objects.requireNonNull(file.getOriginalFilename())));
        } catch (IOException e) {
            throw new StorageException("Failed to store file " + file.getOriginalFilename(), e);
        }
    }

    @Override
    public Stream<Path> loadAll() {
        try {
            return Files.walk(this.rootLocation, 1).filter(path -> !path.equals(this.rootLocation)).map(this.rootLocation::relativize);
        } catch (IOException e) {
            throw new StorageException("Failed to read stored files", e);
        }
    }

    @Override
    public Path load(String filename) {
        return rootLocation.resolve(filename);
    }

    @Override
    public Resource loadAsResource(String filename) {
        try {
            Path file = load(filename);
            Resource resource = new UrlResource(file.toUri());
            if (resource.exists() || resource.isReadable()) {
                return resource;
            } else {
                throw new StorageFileNotFoundException("Could not read file: " + filename);

            }
        } catch (MalformedURLException e) {
            throw new StorageFileNotFoundException("Could not read file: " + filename, e);
        }
    }

    @Override
    public void deleteAll() {
        FileSystemUtils.deleteRecursively(rootLocation.toFile());
    }

    @Override
    public void init() {
        try {
            Files.createDirectory(rootLocation);
        } catch (IOException e) {
            throw new StorageException("Could not initialize storage", e);
        }
    }
}

配置类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package eternal.fire.uploadingfiles.storage;

import org.springframework.boot.context.properties.ConfigurationProperties;

@ConfigurationProperties("storage")
public class StorageProperties {

    /**
     * Folder location for storing files
     */
    private String location = "upload-dir";

    public String getLocation() {
        return location;
    }

    public void setLocation(String location) {
        this.location = location;
    }

}

异常类

1
2
3
4
5
6
7
8
9
10
11
12
package eternal.fire.uploadingfiles.storage;

public class StorageException extends RuntimeException {

    public StorageException(String message) {
        super(message);
    }

    public StorageException(String message, Throwable cause) {
        super(message, cause);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
package eternal.fire.uploadingfiles.storage;

import eternal.fire.uploadingfiles.storage.StorageException;

public class StorageFileNotFoundException extends StorageException {

    public StorageFileNotFoundException(String message) {
        super(message);
    }

    public StorageFileNotFoundException(String message, Throwable cause) {
        super(message, cause);
    }
}

设置上传和下载的文件大小限制

修改application.yml文件为

1
2
3
4
5
spring:
  servlet:
    multipart:
      max-file-size: 1024KB
      max-request-size: 1024KB

如果上传或者下载的文件超出了设置的大小，会出错（这个错误我并没有去处理）。

运行

本地测试可以选择在IDEA里直接运行，也可以用maven打包之后再运行。

服务器部署可以选择用maven打包之后用xftp上传到服务器运行。

总结

恭喜你！又写了一堆没有用的垃圾。
